엡손 장비를 만지다 보니

만나게 되는 스캐너 오류 중 대표적인 것 3가지가 100016, 100017 그리고 100077 이었다.

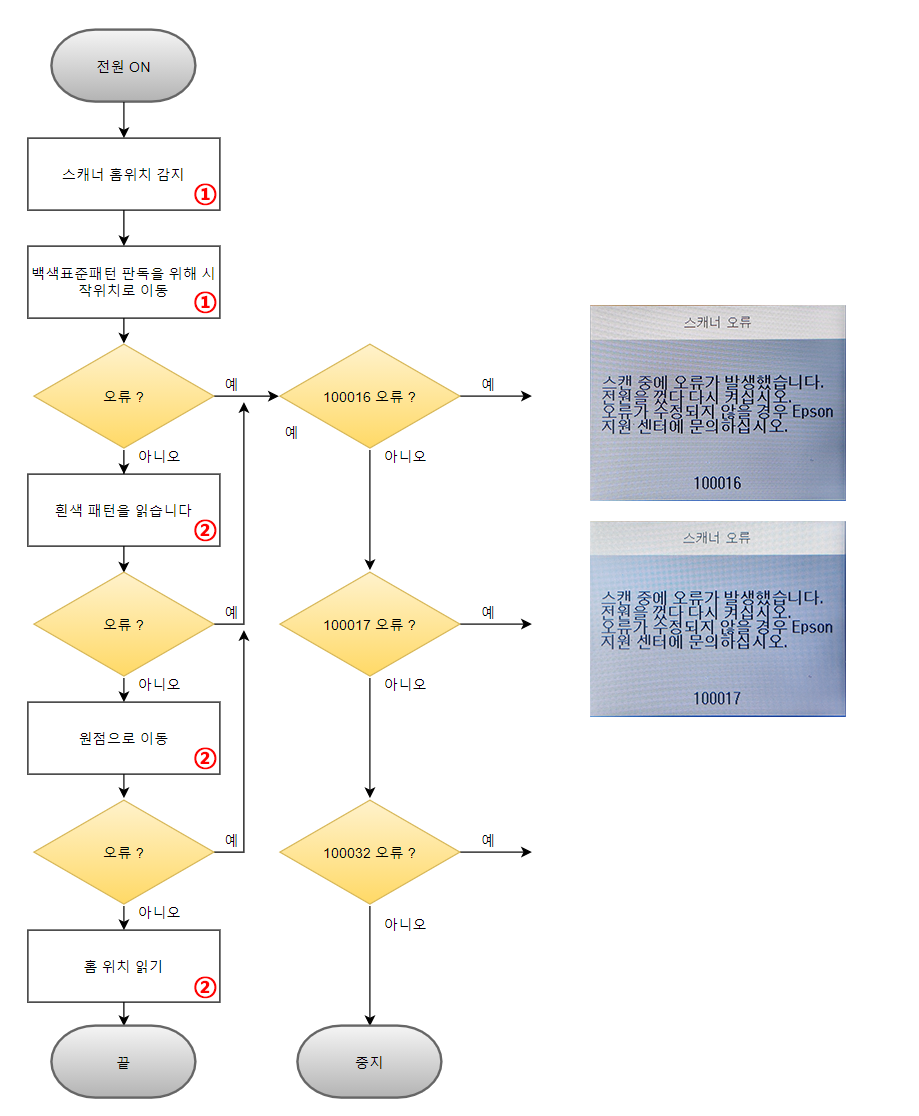

실제 엡손 장비의 부칭시 POST 단계에서 진행되는 동작은

아래 순서도처럼 진행이 된다.













먼저 메인보드에서 스캐너 유닛을 움직이고자 시도를 하는데

그 과정에서 스캐너 유닛과 통신이 되지 않으면 발생하는 에러가 100077이다.





100077은 대부분 케이블 단락으로 인해 생기기 떄문에 메인보드 쪽 FFC 케이블을 제가리에 꼽아 주면 해결이 된다.



100077에 대한 해결방법은 이전에 올린 내용을 참고하시기 바란다.





2022.02.21 - 엡손 스캐너 오류 100077 에 대한 이해 및 수리방법



엡손 스캐너 오류 100077 에 대한 이해 및 수리방법

스캐너 오류 100077은 엡손 WF-2850 이나 2860 등 장비에서 간혹 보이는 오류라고 생각합니다.. 에러가 발생되는 원인은 조립불량으로 인한 스캐너 동작불능입니다.. 요즘 여러가지 부품이나 기기등

richnam.com















그리고 정상적인 통신이 진행이 되었다면 스캐너 유닛내부의 CIS 센서를 우측 끝단으로 이동하여 백색표준패턴을 읽고자 시도한다.





이 과정에서 CIS 센서 일정시간 이동시키고자 시도를 했지만 정해진 시간이 지나버리면 나오는 오류가 100017 오류이다.

즉, 응답이 없다고 간주하여 발생시키는 오류인 것이다.



100017은 SCN 모터가 문제이거나, 모터에 부착된 엔코더 필름의 오염이나 엔코더 필름을 판독하는데 문제가 있거나 FFC 케이블의 손상등으로 정상적인 통신이 이루어 지지 않을 경우에 발생하며, CIS센서 아세이의 파손으로 인해 이동이 불가한 경우에도 나타날 수 있다.

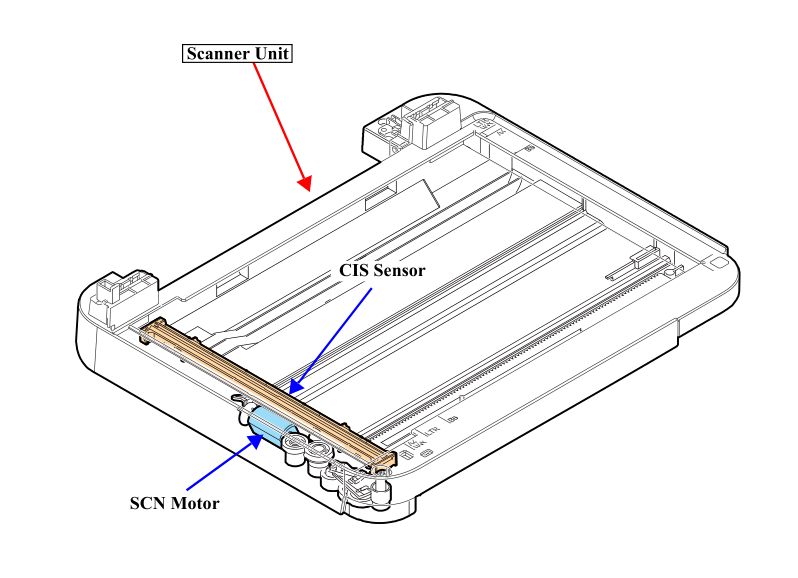

스캐너 매카니즘











백색패턴을 읽으러 이동을 하여 정상적으로 판독이 되었다면

CIS센서를 좌측으로 이동시켜 대기하게 되는데 판독이 불가능한 상태라면

이 때, 발생하는 오류가 100016 이다.









100017 오류까지는 쉽게 접근이 가능하였고,

해결 또한 쉽게 했지만 100016은 원인과 해법(아세이 교체)도 알고 있었지만

그 정확한 원인을 교명하지 못했지만,

기회가 닿아 최종 확인사살을 하였다.







바로 엡손 장비 3대의 사례를 확인해 본 결과 100016은 CIS 센서가 고장이 난 경우로 확인 되었다.







즉, CIS센서만 교체 해주면 수리 끝 !!













위에 언급한 오류에 대한 설명 내용을 첨부하니 필요하신 분은 지식의 범주를 넓히시길 바란다.







ERROR CODE 원인 해결방법
100016
HP detection failure
● The SCN CR could not return to its home.
1. Damage or disengaging of Wheel Train of the Drive Mechanism
2. Disengaging, fraying, jumping of the Timing Belt
● Failed to read the white standard/home patterns.
3. Disconnection, break, skew or damage of the SCN FFC
4. Failure of the CIS Unit
5. Failure of the SCN Housing
6. Failure of the Main Board
1. Turn the power on with the ADF Unit or the Document Cover opened.
2. Check if the CIS moves to the left to read the white standard/home patterns.
3. Check if the emission color of the CIS is white (not greenish, reddish, or
bluish).
If the light does not look like white, check the SCN FFC for damage,
disconnection or skew.
4. Replace the SCN Unit with a new one.
5. Replace the Main Board with a new one.
100017
Contact detection
distance exceeded
● The SCN CR cannot completely reach the home (right side).
1. Damage or disengaging of Wheel Train of the Drive Mechanism
● Failure of SCN Encoder reading
2. Damage or skew of the SCN FFC
3. Failure of the CIS Unit
4. Failure of the SCN Housing
5. Failure of the Main Board
1. Turn the power on with the ADF Unit or the Document Cover opened.
2. Check if the CIS (SCN CR) reaches (comes in contact with) the right side.
3. Check the Wheel Train of the Drive Mechanism for damage.
4. Check the SCN FFC for damage, disconnection or skew.
5. Replace the SCN Unit with a new one.
6. Replace the Main Board with a new one.
100077
FB BS+ excess load
error
● The scanner motor stopped running in the middle of the operation
1. The scanning operation was stopped by;
• Disengaging of the scanner CR
• Disengaging of the scanner motor pulley or cracking of the
scanner motor gears
● Failed to read the scanner motor encoder
2. Contamination of the scanner encoder
3. Failure of the scanner motor (not completely broken).
4. Failure of the Main Board
1. Check the scanner FFC for damage, disconnection or skew.
2. Replace the SCN Unit with a new one.
3. Replace the Main Board with a new one.
